VideoAudio processors

PVDP-1006 series multistandard video-audio processors
(broadcast 6x1 switchers/mixers)

10-bits video ADC/DAC. Up to six video (up to three SDI, PAL/SECAM, YUV, YC) and stereo audio inputs. Optional SDI DSK input. SDI, PAL/SECAM, YC, YUV, stereo/mono audio program outputs. SDI audio embedding and deembedding, SDIembedded as an audio source. Optional noise reduction module. PAL and audio PREVIEW outputs. Glitch-free transitions: X-Mix, V-Mix with a presettable rate, CUT. VBI data (from REF input) restoration mode. Frame freese mode. Dry-reed relay bypass for one video (composite) and one audio channel. The device consists of a system module and a control console. 2-channel audio level meter, master volume and headphone jack on the control console. Video and audio parameters controlable from system module's frontal panel. Remote controls from a PC. Built-in logo (static and animated), scrolling text and GPS-driven time/date generator. 4 TV frames storage. Nonvolatile memory for operational settings. Automatic external data update via RS-485 (PTT-4096 GPS time source, PTC-095 ambient temperature, PMM-4095 meteo information source). Up to two separate logos (graphic and text) and a scrolling text simultaneously. Built-in VITS generator. Three-layer mixing: graphic logos, text logos and scrolling texts.

PVDP-1006 video-audio processor

Additionally for PVDP-1006:

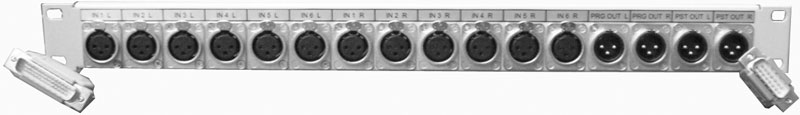

PPM-16M audio cross panel (DB-44, DB-15 => XLR (16 connectors) with 1m cable

software package for remote control from MS-Windows

software package for logo editing

PGPI-4054-14 GPI control console with RS-232 interface (14 GPI commands, clamp and RJ-45 connectors)

PGPI-4054-8 GPI control console with RS-232 interface (8 GPI commands, clamp and RJ-45 connectors)

PPRP-4055 RS-485/RS-232,GPI remote control console

PFRP-3026 RS-485/RS-232 remote control console

PPIV-4010 indication panel (up to two devices)

PBS-15 adapter (DUB15pin to clamp connectors)

PBS-44 adapter (DUB44pin to clamp connectors)

SDI DSK module with frame synchroniser, index K

logo generator, index L

RJ45=>DB9 adapter with RJ45=>RJ45 cable (for RS-232 interface)

Y-connector RJ45=>2 RJ45 with RJ45<=>RJ45 cable (for RS-485 network)

PVDP-1007 series SDI video-audio processors
(broadcast 6x1 switchers/mixers)

Up to six SDI video and stereo audio inputs. Optional SDI DSK input. SDI, PAL/SECAM, S-VHS, YUV, stereo/mono audio program outputs. SDI audio embedding and deembedding, SDIembedded as an audio source. Optional noise reduction module. PAL and audio PREVIEW outputs. Glitch-free transitions: X-Mix, V-Mix with a presettable rate, CUT. VBI data (from REF input) restoration mode. Frame freese mode. Dry-reed relay bypass for one video (composite) and one audio channel. The device consists of a system module and a control console. 2-channel audio level meter, master volume and headphone jack on the control console. Video and audio parameters controlable from system module's frontal panel. Remote controls from a PC. Built-in logo (static and animated), scrolling text and GPS-driven time/date generator. 4 TV frames storage. Nonvolatile memory for operational settings. Automatic external data update via RS-485 (PTT-4096 GPS time source, PTC-095 ambient temperature, PMM-4095 meteo information source). Up to two separate logos (graphic and text) and a scrolling text simultaneously. Built-in VITS generator. Three-layer mixing: graphic logos, text logos and scrolling texts.

PVDP-1007 video-audio processor

Additionally for PVDP-1007:
